sp_alter_column – La stored procedure per modificare una colonna!

Introduzione

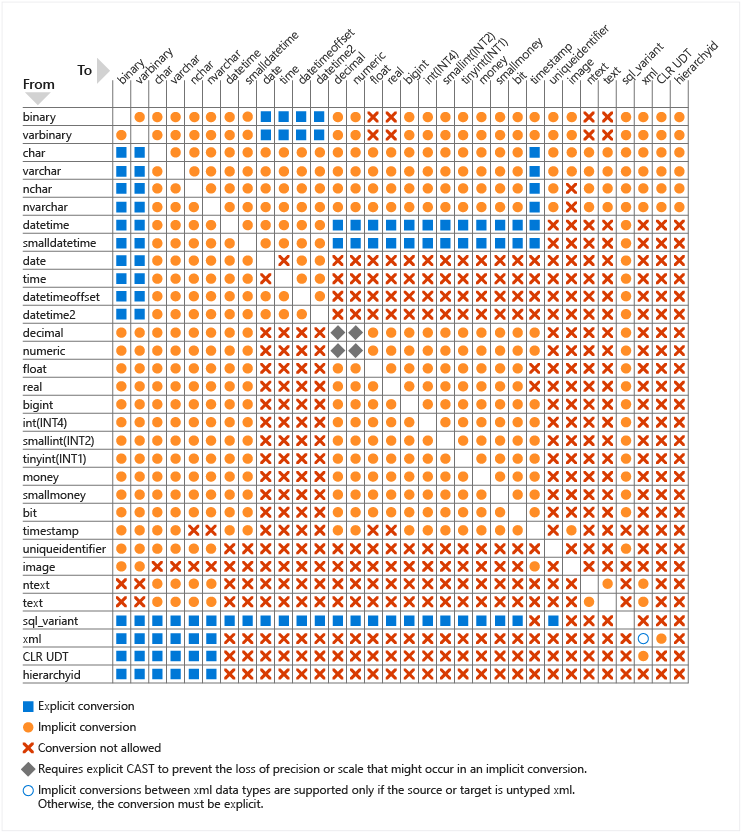

Sarà successo anche a voi di dover modificare il tipo di dato di una colonna presente da tempo in una tabella di un database SQL Server e probabilmente vi sarete scontrati con l’errore 5074 che segnala l’impossibilità di modificare la colonna a causa della presenza di oggetti collegati come Primary Key, Foreign Key, Indici, Vincoli (di univocità e non), Statistiche, ecc..

Ecco un esempio dell’errore 5074:

Msg 5074, Level 16, State 1, Line 1135 - The object 'objectname' is dependent on column 'Columnname'.

Msg 4922, Level 16, State 9, Line 1135 - ALTER TABLE ALTER COLUMN Columnname failed because one or more objects access this column.

Anche la modifica del nome non è un’operazione banale, specialmente se la colonna è referenziata in Viste, Stored Procedure ecc.. Per eseguire il rename di una colonna c’è la Stored Procedure di sistema sp_rename, ma per il cambio del tipo di dato, al netto di eventuali tool di terze parti, non avete altra possibilità se non quella di agire manualmente via script T-SQL.

Come avete risolto il problema?

Alcuni di voi probabilmente avranno eliminato gli oggetti collegati, modificato il tipo di dato della colonna, la dimensione dove prevista, oppure le proprietà e successivamente avrete ricreato gli oggetti precedentemente eliminati facendo molta attenzione a non modificare le proprietà degli oggetti stessi durante le operazioni di DROP e CREATE.

Personalmente, mi sono scontrato diverse volte con questo problema al punto di voler automatizzare l’eliminazione e la creazione degli oggetti collegati ad una colonna per poterne modificare il tipo agevolmente. E’ nata così la stored procedure sp_alter_column che potete trovare di seguito e anche nell’omonimo repository di Github!

------------------------------------------------------------------------
-- Project:      sp_alter_column                                       -
--               The stored procedure that is able to alter a column   -
--               with dependencies in your SQL database                -
--               https://github.com/segovoni/sp_alter_column           -
-- File:         The implementation of the sp_alter_column             -
-- Author:       Sergio Govoni                                         -
-- Notes:        --                                                    -
------------------------------------------------------------------------


IF OBJECT_ID('dbo.sp_alter_column', 'P') IS NOT NULL
  DROP PROCEDURE dbo.sp_alter_column;
GO

CREATE PROCEDURE dbo.sp_alter_column
(
  @schemaname SYSNAME
  ,@tablename SYSNAME
  ,@columnname SYSNAME
  ,@columnrename SYSNAME = @columnname
  ,@datatype SYSNAME
  ,@executionmode bit = 0
)
AS BEGIN
  /*
    Author: Sergio Govoni https://www.linkedin.com/in/sgovoni/
    Version: 1.0
	   License: MIT License
	   Github repository: https://github.com/segovoni/sp_alter_column
	   Documentation will coming soon!
  */

  -- Check input parameters
  IF (LTRIM(RTRIM(ISNULL(@schemaname, ''))) = '')
  BEGIN
    RAISERROR(N'The parameter schema name (@schemaname) is not specified or is empty.', 16, 1);
    RETURN;
  END;

  IF (LTRIM(RTRIM(ISNULL(@tablename, ''))) = '')
  BEGIN
    RAISERROR(N'The parameter table name (@tablename) is not specified or is empty.', 16, 1);
    RETURN;
  END;

  IF (LTRIM(RTRIM(ISNULL(@columnname, ''))) = '')
  BEGIN
    RAISERROR(N'The parameter column name (@columnname) is not specified or is empty.', 16, 1);
    RETURN;
  END;

  IF (LTRIM(RTRIM(ISNULL(@columnrename, ''))) = '')
  BEGIN
    RAISERROR(N'The parameter column rename (@columnrename), if specified, it can not be empty.', 16, 1);
    RETURN;
  END;

  IF (LTRIM(RTRIM(ISNULL(@datatype, ''))) = '')
  BEGIN
    RAISERROR(N'The parameter data type (@datatype) is not specified or is empty.', 16, 1);
    RETURN;
  END;

  IF NOT EXISTS (SELECT
                   ORDINAL_POSITION
                 FROM
                   INFORMATION_SCHEMA.COLUMNS
                 WHERE
                   (TABLE_SCHEMA=@schemaname)
                   AND (TABLE_NAME=@tablename)
                   AND (COLUMN_NAME=@columnname))
  BEGIN
    RAISERROR(N'The object has not been found.', 16, 1);
    RETURN;
  END;

  -- Let's go!
  BEGIN TRY
    SET NOCOUNT ON;

    -- Create temporary table
    CREATE TABLE #tmp_usp_alter_column
    (
      schemaname SYSNAME NOT NULL
      ,tablename SYSNAME NOT NULL
      ,objecttype SYSNAME NOT NULL
      ,operationtype NVARCHAR(1) NOT NULL
      ,sqltext NVARCHAR(MAX) NOT NULL
    );

    -- Foreign key section
    -- Drop foreign key
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      schemap.name AS schemaname
      ,objp.name AS tablename
      ,'FK' AS objecttype
      ,'D' AS operationtype,
      ('ALTER TABLE [' + RTRIM(schemap.name) + '].[' + RTRIM(objp.name) + '] ' +
       'DROP CONSTRAINT [' + RTRIM(constr.name) + '];') AS sqltext
    FROM
      sys.foreign_key_columns AS fkc
    JOIN
      sys.objects AS objp ON objp.object_id=fkc.parent_object_id
    JOIN
      sys.schemas AS schemap ON objp.schema_id=schemap.schema_id
    JOIN
      sys.objects AS objr ON objr.object_id=fkc.referenced_object_id
    JOIN
      sys.schemas AS schemar ON objr.schema_id=schemar.schema_id
    JOIN
      sys.columns AS colr ON colr.column_id=fkc.referenced_column_id and colr.object_id=fkc.referenced_object_id
    JOIN
      sys.columns AS colp ON colp.column_id=fkc.parent_column_id and colp.object_id=fkc.parent_object_id
    JOIN
      sys.objects AS constr ON constr.object_id=fkc.constraint_object_id
    WHERE
      -- ToDo
      ((schemar.name=@schemaname) AND (objr.name=@tablename) AND (colr.name=@columnname) AND (objr.type='U')) OR
      ((schemap.name=@schemaname) AND (objp.name=@tablename) AND (colp.name=@columnname) AND (objr.type='U'));

    -- Create foreign key
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      schemap.name AS schemaname
      ,objp.name AS tablename
      ,'FK' AS objecttype
      ,'C' AS operationtype
      ,('ALTER TABLE [' + RTRIM(schemap.name) + '].[' + RTRIM(objp.name) + '] ' +
        CASE (fk.is_not_trusted)
          WHEN 0 THEN 'WITH CHECK ADD CONSTRAINT [' + RTRIM(constr.name) + '] '
          WHEN 1 THEN 'WITH NOCHECK ADD CONSTRAINT [' + RTRIM(constr.name) + '] '
        END +
        'FOREIGN KEY ([' + RTRIM(colp.name) + '])' + ' ' +
        'REFERENCES [' + RTRIM(schemar.name) + '].[' + RTRIM(objr.name) + ']([' + RTRIM(colr.name) + ']);') AS sqltext
    FROM
      sys.foreign_key_columns AS fkc
    JOIN
      sys.foreign_keys AS fk ON fkc.constraint_object_id=fk.object_id
    JOIN
      sys.objects AS objp ON objp.object_id=fkc.parent_object_id
    JOIN
      sys.schemas AS schemap ON objp.schema_id=schemap.schema_id
    JOIN
      sys.objects AS objr ON objr.object_id=fkc.referenced_object_id
    JOIN
      sys.schemas AS schemar ON objr.schema_id=schemar.schema_id
    JOIN
      sys.columns AS colr ON colr.column_id=fkc.referenced_column_id and colr.object_id=fkc.referenced_object_id
    JOIN
      sys.columns AS colp ON colp.column_id=fkc.parent_column_id and colp.object_id=fkc.parent_object_id
    JOIN
      sys.objects AS constr ON constr.object_id=fkc.constraint_object_id
    WHERE
      -- ToDo
      /*
      (schemar.name=@schemaname)
      AND (objr.name=@tablename)
      AND (colr.name=@columnname)
      AND (objr.type='U');
      */
      ((schemar.name=@schemaname) AND (objr.name=@tablename) AND (colr.name=@columnname) AND (objr.type='U')) OR
      ((schemap.name=@schemaname) AND (objp.name=@tablename) AND (colp.name=@columnname) AND (objr.type='U'));

    -- Default constraints section
    -- Drop default constraints
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      S.name AS schemaname
      ,O.name AS tablename
      ,'DF' AS objecttype
      ,'D' AS operationtype
      ,('ALTER TABLE [' + RTRIM(S.name) + '].[' + RTRIM(O.name) + '] ' +
        'DROP [' + RTRIM(DC.name) + '];') AS sqltext
    FROM
      sys.default_constraints AS DC
    JOIN
      sys.objects AS O ON DC.parent_object_id=O.object_id
    JOIN
      sys.schemas AS S ON O.schema_id=S.schema_id
    JOIN
      sys.columns AS Col ON Col.default_object_id=DC.object_id
    WHERE
      (S.name=@schemaname)
      AND (O.name=@tablename)
      AND (Col.name=@columnname)
      AND (DC.type='D')
      AND (O.type='U');

    -- Create default constraints
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      S.name AS schemaname
      ,O.name AS tablename
      ,'DF' AS objecttype
      ,'C' AS operationtype
      ,('ALTER TABLE [' + RTRIM(S.name) + '].[' + RTRIM(O.name) + '] ' +
        'ADD CONSTRAINT [' + RTRIM(DC.name) + '] ' +
        'DEFAULT ' + DC.definition + ' ' +
        'FOR [' + Col.name + '];') AS sqltext
    FROM
      sys.default_constraints AS DC
    JOIN
      sys.objects AS O ON DC.parent_object_id=O.object_id
    JOIN
      sys.schemas AS S ON O.schema_id=S.schema_id
    JOIN
      sys.columns AS Col ON Col.default_object_id=DC.object_id
    WHERE
      (S.name=@schemaname)
      AND (O.name=@tablename)
      AND (Col.name=@columnname)
      AND (DC.type='D')
      AND (O.type='U');

    -- Unique constraints and Primary keys section
    -- Drop unique constraints and primary keys
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      KCU.TABLE_SCHEMA AS schemaname
      ,KCU.TABLE_NAME AS tablename
      -- ToDo: Keep fixed objecttype code
      ,KC.type AS objecttype
      ,'D' AS operationtype
      ,('ALTER TABLE [' + RTRIM(KCU.TABLE_SCHEMA) + '].[' + RTRIM(KCU.TABLE_NAME) + '] ' +
        'DROP CONSTRAINT [' + RTRIM(KCU.CONSTRAINT_NAME) + '];') AS sqltext
    FROM
      INFORMATION_SCHEMA.KEY_COLUMN_USAGE AS KCU
    JOIN
      sys.key_constraints AS KC ON KCU.CONSTRAINT_NAME=KC.name
    WHERE
      (KCU.TABLE_SCHEMA=@schemaname)
      AND (KCU.TABLE_NAME=@tablename)
      AND (KCU.COLUMN_NAME=@columnname)
      AND ((KC.type='UQ') OR (KC.type='PK'));

    -- Create unique constraints and primary keys
    WITH UQC_PK AS
    (
      SELECT
        DISTINCT
        'A' AS rowtype
        -- ToDo: Keep fixed objecttype code
        ,K.type AS objecttype
        ,KCU.TABLE_CATALOG
        ,KCU.TABLE_SCHEMA
        ,KCU.TABLE_NAME
        ,KCU.CONSTRAINT_NAME
        ,CAST(0 AS INTEGER) AS ordinal_position
        ,CAST('' AS VARCHAR(MAX)) AS COLUMN_NAME
        ,CAST('ALTER TABLE [' + RTRIM(KCU.TABLE_SCHEMA) + '].[' + RTRIM(KCU.TABLE_NAME) + '] ' +
              (CASE (K.type)
                 WHEN 'PK' THEN ' WITH NOCHECK '
                 ELSE ' '
               END)  +
              'ADD CONSTRAINT [' + RTRIM(KCU.CONSTRAINT_NAME) + '] ' +
              (CASE (K.type)
                 WHEN 'UQ' THEN 'UNIQUE'
                 WHEN 'PK' THEN 'PRIMARY KEY'
               END)  + '('AS VARCHAR(MAX)) AS sqltext
      FROM
        INFORMATION_SCHEMA.KEY_COLUMN_USAGE AS KCU
      JOIN
        sys.key_constraints AS K ON KCU.CONSTRAINT_NAME=K.name
      WHERE
        (KCU.TABLE_SCHEMA=@schemaname)
        AND (KCU.TABLE_NAME=@tablename)
        AND (KCU.COLUMN_NAME=@columnname)
        AND ((K.type='UQ') OR (K.type='PK'))

      UNION ALL

      SELECT
        'R' AS rowtype
        ,U.objecttype
        ,U.TABLE_CATALOG
        ,U.TABLE_SCHEMA
        ,U.TABLE_NAME
        ,U.CONSTRAINT_NAME
        ,KCU2.ORDINAL_POSITION
        ,U.COLUMN_NAME
        ,CAST(U.sqltext +
              CASE (KCU2.ordinal_position)
                WHEN 1 THEN ''
                ELSE ','
              END + ' [' + RTRIM(KCU2.COLUMN_NAME) + '] ' AS VARCHAR(MAX)) AS sqltext
      FROM
        UQC_PK AS U
      JOIN
        INFORMATION_SCHEMA.KEY_COLUMN_USAGE AS KCU2 ON (U.TABLE_CATALOG=KCU2.TABLE_CATALOG)
                                                   AND (U.TABLE_SCHEMA=KCU2.TABLE_SCHEMA)
                                                   AND (U.TABLE_NAME=KCU2.TABLE_NAME)
                                                   AND (U.CONSTRAINT_NAME=KCU2.CONSTRAINT_NAME)
      WHERE (KCU2.ordinal_position=U.ordinal_position + 1)
    ),
    UQC_PK2 AS
    (
      SELECT
        MAX(UQC_PK.ordinal_position) AS maxordinalposition
        ,UQC_PK.objecttype
        ,UQC_PK.TABLE_SCHEMA
        ,UQC_PK.TABLE_NAME
        ,UQC_PK.CONSTRAINT_NAME
      FROM
        UQC_PK
      WHERE
        (UQC_PK.rowtype='R')
      GROUP BY
        UQC_PK.objecttype
        ,UQC_PK.TABLE_SCHEMA
        ,UQC_PK.TABLE_NAME
        ,UQC_PK.CONSTRAINT_NAME
    )
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      UQC_PK.TABLE_SCHEMA
      ,UQC_PK.TABLE_NAME
      ,UQC_PK.objecttype
      ,'C'
      ,UQC_PK.sqltext + ') '
    FROM
      UQC_PK2
    JOIN
      UQC_PK ON (UQC_PK.CONSTRAINT_NAME=UQC_PK2.CONSTRAINT_NAME)
            AND (UQC_PK.TABLE_SCHEMA=UQC_PK2.TABLE_SCHEMA)
            AND (UQC_PK.TABLE_NAME=UQC_PK2.TABLE_NAME)
            AND (UQC_PK.ordinal_position=UQC_PK2.maxordinalposition);

    -- Check constraints section
    -- Drop check constraints
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      CCU.TABLE_SCHEMA AS schemaname
      ,CCU.TABLE_NAME AS tablename
      -- ToDo: Keep fixed objecttype code
      ,CHK.type AS objecttype
      ,'D' AS operationtype
      ,('ALTER TABLE [' + RTRIM(CCU.TABLE_SCHEMA) + '].[' + RTRIM(CCU.TABLE_NAME) + '] ' +
        'DROP CONSTRAINT [' + RTRIM(CCU.CONSTRAINT_NAME) + '];') AS sqltext
    FROM
      INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE AS CCU
    JOIN
      sys.check_constraints AS CHK ON CCU.CONSTRAINT_NAME=CHK.name
    WHERE
      (CCU.TABLE_SCHEMA=@schemaname)
      AND (CCU.TABLE_NAME=@tablename)
      AND (CCU.COLUMN_NAME=@columnname)
      AND (CHK.type='C');

    -- Create (enabled) check constraints
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      CCU.TABLE_SCHEMA AS schemaname
      ,CCU.TABLE_NAME AS tablename
      ,CHK.type AS objecttype
      ,'C' AS operationtype
      ,('ALTER TABLE [' + RTRIM(CCU.TABLE_SCHEMA) + '].[' + RTRIM(CCU.TABLE_NAME) + '] ' +
        CASE (CHK.is_not_trusted)
          WHEN 0 THEN 'WITH CHECK ADD CONSTRAINT [' + RTRIM(CCU.CONSTRAINT_NAME) + '] CHECK ' + RTRIM(CHK.Definition) + ';'
          WHEN 1 THEN 'WITH NOCHECK ADD CONSTRAINT [' + RTRIM(CCU.CONSTRAINT_NAME) + '] CHECK ' + RTRIM(CHK.Definition) + ';'END ) AS sqltext
    FROM
      INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE AS CCU
    JOIN
      sys.check_constraints AS CHK ON CCU.CONSTRAINT_NAME=CHK.name
    WHERE
      (CCU.TABLE_SCHEMA=@schemaname)
      AND (CCU.TABLE_NAME=@tablename)
      AND (CCU.COLUMN_NAME=@columnname)
      AND (CHK.type='C');

    -- Create (disabled) check constraints
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      CCU.TABLE_SCHEMA AS schemaname
      ,CCU.TABLE_NAME AS tablename
      ,CHK.type AS objecttype
      ,'I' AS operationtype
      ,('ALTER TABLE [' + RTRIM(CCU.TABLE_SCHEMA) + '].[' + RTRIM(CCU.TABLE_NAME) + '] ' +
        'NOCHECK CONSTRAINT [' + RTRIM(CCU.CONSTRAINT_NAME) + '];') AS sqltext
    FROM
      INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE AS CCU
    JOIN
      sys.check_constraints AS CHK ON CCU.CONSTRAINT_NAME=CHK.name
    WHERE
      (CCU.TABLE_SCHEMA=@schemaname)
      AND (CCU.TABLE_NAME=@tablename)
      AND (CCU.COLUMN_NAME=@columnname)
      AND (CHK.type='C')
      AND (CHK.is_disabled=1);

    -- Statistics section
    -- Drop statistics
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      sch.name AS schemaname
      ,obj.name AS tablename
      ,'STATS' AS objecttype
      ,'D' AS operationtype
      ,'DROP STATISTICS [' + RTRIM(sch.name) + '].[' + RTRIM(obj.name) + '].[' + RTRIM(stat.name) + ']' AS SQLStr
    FROM
      sys.stats_columns AS statc
    JOIN
      sys.stats AS stat ON ((stat.stats_id=statc.stats_id) AND (stat.object_id=statc.object_id))
    JOIN
      sys.objects AS obj ON statc.object_id=obj.object_id
    JOIN
      sys.columns AS col ON ((col.column_id=statc.column_id) AND (col.object_id=statc.object_id))
    JOIN
      sys.schemas AS sch ON obj.schema_id=sch.schema_id
    WHERE
      (sch.name=@schemaname)
      AND (obj.name=@tablename)
      AND (col.name=@columnname)
      AND ((stat.auto_created=1) OR (stat.user_created=1))
      AND (obj.type='U');

    -- Create statistics
    WITH Stat AS
    (
      SELECT
        'A' AS RowType
        ,T.object_id
        ,T.stats_id
        ,T.StatLevel
        ,T.KeyOrdinal
        ,T.SchemaName
        ,T.TableName
        ,CAST('CREATE ' +
              'STATISTICS [' + RTRIM(T.StatsName) +
              '] ON [' + RTRIM(T.SchemaName) +
              '].[' + RTRIM(T.TableName) +
              '] ( ' AS VARCHAR(MAX)) AS SQLStr
      FROM
      (
        SELECT
          DISTINCT
          stat.object_id
          ,stat.stats_id
          ,CAST(0 AS INTEGER) AS StatLevel
          ,CAST(0 AS INTEGER) AS KeyOrdinal
          ,stat.name AS StatsName
          ,sch.name AS SchemaName
          ,obj.name AS TableName
        FROM
          sys.stats_columns AS statc
        JOIN
          sys.stats AS stat ON ((stat.stats_id=statc.stats_id)
                            AND (stat.object_id=statc.object_id))
        JOIN
          sys.objects AS obj ON statc.object_id=obj.object_id
        JOIN
          sys.columns AS col ON ((col.column_id=statc.column_id)
                             AND (col.object_id=statc.object_id))
        JOIN
          sys.schemas AS sch ON obj.schema_id=sch.schema_id
        WHERE
          (sch.name=@schemaname)
          AND (obj.name=@tablename)
          AND (col.name=@columnname)
          AND (obj.type='U')
          AND ((stat.auto_created=1) OR (stat.user_created=1))
      ) AS T

      UNION ALL

      SELECT
        'R' AS RowType
        ,statcol.object_id
        ,statcol.stats_id
        ,CAST(S.StatLevel + 1 AS INTEGER) AS IdxLevel
        ,CAST(statcol.stats_column_id AS INTEGER) KeyOrdinal
        ,S.SchemaName
        ,S.TableName
        ,CAST(S.SQLStr + CASE (statcol.stats_column_id) WHEN 1 THEN '' ELSE ',' END +
              ' [' + RTRIM(col.name) +
              '] ' AS VARCHAR(MAX)) AS SQLStr
      FROM
        Stat AS S
      JOIN
        sys.stats_columns AS statcol ON ((statcol.object_id=S.object_id)
                                     AND (statcol.stats_id=S.stats_id))
      JOIN
        sys.columns AS col ON ((col.column_id=statcol.column_id)
                           AND (col.object_id=statcol.object_id))
      WHERE
        (statcol.stats_column_id=(S.KeyOrdinal + 1))
    ),
    Stat2 AS
    (
      SELECT
        MAX(Stat.KeyOrdinal) AS MaxKeyOrdinal
        ,Stat.object_id
        ,Stat.stats_id
      FROM
        Stat
      JOIN
        sys.objects AS O ON O.object_id=Stat.object_id
      WHERE
        (Stat.RowType='R')
      GROUP BY
        Stat.object_id
        ,Stat.stats_id
    )
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      Stat.schemaname
      ,Stat.tablename
      ,'STATS' AS objecttype
      ,'C' AS operationtype
      ,Stat.SQLStr + ')'
    FROM
      Stat2
    JOIN
      Stat ON ((Stat.object_id=Stat2.object_id)
           AND (Stat.stats_id=Stat2.stats_id))
           AND (Stat.KeyOrdinal=Stat2.MaxKeyOrdinal);

    -- Indexes section
    -- Drop indexes
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      DISTINCT
      sch.name
      ,obj.name
      ,'IDX' AS objecttype
      ,'D' AS operationtype
      ,('DROP INDEX [' + RTRIM(sch.name) + '].[' + RTRIM(obj.name) + '].[' + RTRIM(idx.name) + '];') AS sqltext
    FROM
      sys.index_columns AS idxc
    JOIN
      sys.indexes AS idx ON ((idx.index_id=idxc.index_id)
                         AND (idx.object_id=idxc.object_id))
    JOIN
      sys.objects AS obj ON idxc.object_id=obj.object_id
    JOIN
      sys.columns AS col ON ((col.column_id=idxc.column_id)
                         AND (col.object_id=idxc.object_id))
    JOIN
      sys.schemas AS sch ON obj.schema_id=sch.schema_id
    WHERE
      (sch.name=@schemaname)
      AND (obj.name=@tablename)
      AND (col.name=@columnname)
      AND (idx.is_unique_constraint=0)
      AND (idx.is_primary_key=0)
      AND (obj.type='U')
    ORDER BY
      sqltext;

    -- Create indexes
    WITH Create_Indexes AS
    (
      SELECT
        'A' AS rowtype
        ,T.object_id
        ,T.index_id
        ,T.IdxLevel
        ,T.KeyOrdinal
        ,T.IsUnique
        ,T.IsClustered
        ,T.SchemaName
        ,T.TableName
        ,CAST('CREATE ' + T.IsUnique + T.IsClustered +
              'INDEX [' + RTRIM(T.IndexName) + '] ON [' + RTRIM(T.SchemaName) + '].[' +
              RTRIM(T.TableName) + '] ( 'AS VARCHAR(MAX)) AS sqltext
      FROM
        (SELECT
           DISTINCT
           idx.object_id
           ,idx.index_id
           ,CAST(0 AS INTEGER) AS IdxLevel
           ,CAST(0 AS INTEGER) AS KeyOrdinal
           ,CAST(CASE (idx.is_unique)
                   WHEN 1 THEN 'UNIQUE '
                   WHEN 0 THEN ''
                   ELSE ''
                 END AS VARCHAR(MAX)) AS IsUnique
           ,CAST(CASE (idx.type)
                   WHEN 1 THEN 'CLUSTERED '
                   WHEN 2 THEN 'NONCLUSTERED '
                   ELSE ''
                 END AS VARCHAR(MAX)) AS IsClustered
           ,idx.name AS IndexName
           ,sch.name AS SchemaName
           ,obj.name AS TableName
         FROM
           sys.index_columns AS idxc
         JOIN
           sys.indexes AS idx ON ((idx.index_id=idxc.index_id) AND (idx.object_id=idxc.object_id))
         JOIN
           sys.objects AS obj ON idxc.object_id=obj.object_id
         JOIN
           sys.columns AS col ON ((col.column_id=idxc.column_id) AND (col.object_id=idxc.object_id))
         JOIN
           sys.schemas AS sch ON obj.schema_id=sch.schema_id
         WHERE
           (sch.name=@schemaname)
           AND (obj.name=@tablename)
           AND (col.name=@columnname)
           AND (idx.is_unique_constraint=0)
           AND (idx.is_primary_key=0)
           AND (obj.type='U')
           AND NOT EXISTS (SELECT
                             [object_id]
                           FROM
                             sys.index_columns AS ic
                           WHERE (ic.is_included_column=1)
                             AND (idxc.[object_id]=ic.[object_id])
                             AND (idxc.index_id=ic.index_id)
                          )
        ) AS T

      UNION ALL

      SELECT
        'R' AS RowType
        ,idxcol.object_id
        ,idxcol.index_id
        ,CAST(I.IdxLevel + 1 AS INTEGER) AS IdxLevel
        ,CAST(idxcol.key_ordinal AS INTEGER) AS KeyOrdinal
        ,CAST('' AS VARCHAR(MAX)) AS IsUnique
        ,CAST('' AS VARCHAR(MAX)) AS IsClustered
        ,I.SchemaName
        ,I.TableName
        ,CAST(I.sqltext + CASE (idxcol.key_ordinal)
                            WHEN 1 THEN ''
                            ELSE ','
                          END + ' [' + RTRIM(col.name) + '] ' AS VARCHAR(MAX)) AS sqltext
      FROM
        Create_Indexes AS I
      JOIN
        sys.index_columns AS idxcol ON ((idxcol.object_id=I.object_id) AND (idxcol.index_id=I.index_id))
      JOIN
        sys.columns AS col ON ((col.column_id=idxcol.column_id) AND (col.object_id=idxcol.object_id))
      WHERE
        (idxcol.key_ordinal=I.KeyOrdinal + 1)
    ),
    Create_Indexes2 AS
    (
      SELECT
        MAX(Create_Indexes.KeyOrdinal) AS MaxKeyOrdinal
        ,Create_Indexes.object_id
        ,Create_Indexes.index_id
      FROM
        Create_Indexes
      JOIN
        sys.objects AS O ON (O.object_id=Create_Indexes.object_id)
      WHERE
        (Create_Indexes.RowType='R')
      GROUP BY
        Create_Indexes.object_id
        ,Create_Indexes.index_id
    )
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      Create_Indexes.SchemaName
      ,Create_Indexes.TableName
      ,'IDX' AS objecttype
      ,'C' AS operationtype
      ,Create_Indexes.sqltext + ')'
    FROM
      Create_Indexes2
    JOIN
      Create_Indexes ON ((Create_Indexes.object_id=Create_Indexes2.object_id)
                     AND (Create_Indexes.index_id=Create_Indexes2.index_id)
                     AND (Create_Indexes.KeyOrdinal=Create_Indexes2.MaxKeyOrdinal));

    -- Views section
    -- Refresh views
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    )
    SELECT
      V.TABLE_SCHEMA
      ,V.TABLE_NAME
      ,'VW' AS objecttype
      ,'R' AS OperationType
      ,('EXECUTE sp_refreshview ''[' + RTRIM(V.TABLE_SCHEMA) + '].[' + RTRIM(V.TABLE_NAME) + ']'';') AS sqltext
    FROM
      INFORMATION_SCHEMA.VIEWS AS V
    WHERE
      (V.IS_UPDATABLE='NO');

    DECLARE
      @sqldrop NVARCHAR(MAX) = ''
      --,@sqldropfk NVARCHAR(MAX) = ''
      --,@sqldroppk NVARCHAR(MAX) = ''
      --,@sqldropuq NVARCHAR(MAX) = ''
      --,@sqldropck NVARCHAR(MAX) = ''
      --,@sqldropdf NVARCHAR(MAX) = ''
      --,@sqldropidx NVARCHAR(MAX) = ''
      --,@sqldropstats NVARCHAR(MAX) = ''

      ,@sqlcreate NVARCHAR(MAX) = ''
      --,@sqlcreatefk NVARCHAR(MAX) = ''
      --,@sqlcreatepk NVARCHAR(MAX) = ''
      --,@sqlcreateuq NVARCHAR(MAX) = ''
      --,@sqlcreateck NVARCHAR(MAX) = ''
      --,@sqlcreatedf NVARCHAR(MAX) = ''
      --,@sqlcreateidx NVARCHAR(MAX) = ''
      --,@sqlcreatestats NVARCHAR(MAX) = ''

      ,@sqlaltertable NVARCHAR(MAX) = ''
      ,@sqlrenametable NVARCHAR(MAX) = ''

      ,@crlf NVARCHAR(2) = CHAR(13)+CHAR(10)
      ,@trancount INTEGER = @@TRANCOUNT
      ,@olddatatype SYSNAME
      --,@tmpNewDataType SYSNAME;

    --------------------------------------------------------
    -- DROP statements for the following objects
    --
    -- Foreign key (FK)
    -- Primary key (PK)
    -- Unique constraints (UQ)
    -- Check constraints (CK)
    -- Default constraints (DF)
    -- Indexes (not related to unique constraints, IDX)
    -- Statistics
    --------------------------------------------------------

    IF (@executionmode = 1)
    BEGIN
      IF (@trancount = 0)
        -- Opening an explicit transaction to avoid auto commits
        BEGIN TRANSACTION
    END

    DECLARE C_SQL_DROP CURSOR LOCAL FORWARD_ONLY READ_ONLY FOR
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='FK')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='PK')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='UQ')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='CK')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='DF')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='IDX')
        AND (operationtype='D')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='STATS')
        AND (operationtype='D');

    OPEN C_SQL_DROP;

    -- First fetch
    FETCH NEXT FROM C_SQL_DROP INTO @sqldrop

    WHILE (@@FETCH_STATUS=0)
    BEGIN
      IF (@executionmode = 0)
        PRINT(@sqldrop);
      ELSE IF (@executionmode = 1)
        EXEC(@sqldrop);
      FETCH NEXT FROM C_SQL_DROP INTO @sqldrop
    END;

    CLOSE C_SQL_DROP;
    DEALLOCATE C_SQL_DROP;

    SET @sqlaltertable = 'ALTER TABLE [' + @schemaname + '].[' + @tablename +
                         '] ALTER COLUMN [' + @columnname +
                         '] ' + @datatype + ';' + @CRLF;

    -- ALTER TABLE
    INSERT INTO #tmp_usp_alter_column
    (
      schemaname
      ,tablename
      ,objecttype
      ,operationtype
      ,sqltext
    ) VALUES
    (
      @schemaname
      ,@tablename
      ,'COL'
      ,'A'
      ,@sqlaltertable
    );

    IF (@executionmode = 0)
      PRINT(@sqlaltertable);
    ELSE IF (@executionmode = 1)
      EXEC(@sqlaltertable);

    IF (@columnname <> @columnrename) AND
       (LTRIM(RTRIM(@columnrename)) <> '')
    BEGIN
      SET @sqlrenametable = 'EXEC sp_rename ''[' + @schemaname + '].[' + @tablename +'].[' + @columnname + ']'', ''[' +
                                                   @schemaname + '].[' + @tablename +'].[' + @columnrename + ']''' + @CRLF;

      -- Rename
      INSERT INTO #tmp_usp_alter_column
      (
        schemaname
        ,tablename
        ,objecttype
        ,operationtype
        ,sqltext
      ) VALUES
      (
        @schemaname
        ,@tablename
        ,'COL'
        ,'R'
        ,@sqlrenametable
      );

      IF (@executionmode = 0)
        PRINT(@sqlrenametable);
      ELSE IF (@executionmode = 1)
        EXEC(@sqlrenametable);
    END;

    --------------------------------------------------------
    -- CREATE statements for the following objects
    --
    -- Foreign key (FK)
    -- Primary key (PK)
    -- Unique constraints (UQ)
    -- Check constraints (CK)
    -- Default constraints (DF)
    -- Indexes (not related to unique constraints, IDX)
    -- Statistics
    --------------------------------------------------------
    DECLARE C_SQL_CREATE CURSOR LOCAL FORWARD_ONLY READ_ONLY FOR
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='FK')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='PK')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='UQ')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='CK')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='DF')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='IDX')
        AND (operationtype='C')
      UNION ALL
      SELECT
        sqltext
      FROM
        #tmp_usp_alter_column
      WHERE
        (objecttype='STATS')
        AND (operationtype='C');

    OPEN C_SQL_CREATE;

    -- First fetch
    FETCH NEXT FROM C_SQL_CREATE INTO @sqlcreate

    WHILE (@@FETCH_STATUS=0)
    BEGIN
      IF (@executionmode = 0)
        PRINT(@sqlcreate);
      ELSE IF (@executionmode = 1)
        EXEC(@sqlcreate);

      FETCH NEXT FROM C_SQL_CREATE INTO @sqlcreate;
    END;

    CLOSE C_SQL_CREATE;
    DEALLOCATE C_SQL_CREATE;

    --PRINT(@sqldropfk + @sqldroppk + @sqldropuq + @sqldropck + @sqldropdf + @sqldropidx + @sqldropstats);
    --PRINT(@sqlcreatefk + @sqlcreatepk + @sqlcreateuq + @sqlcreateck + @sqlcreatedf + @sqlcreateidx + @sqlcreatestats);
    IF (@executionmode = 0)
      SELECT * FROM #tmp_usp_alter_column;

    IF (@executionmode = 1) AND
       (@trancount = 0) AND
       (@@ERROR = 0)
      COMMIT TRANSACTION;

    SET NOCOUNT OFF;
  END TRY
  BEGIN CATCH
    IF (@executionmode = 1) AND
       (@trancount = 0)
      ROLLBACK TRANSACTION;

    -- Error handling
    DECLARE
      @ErrorMessage NVARCHAR(MAX)
      ,@ErrorSeverity INTEGER
      ,@ErrorState INTEGER;

    SELECT
      @ErrorMessage = ERROR_MESSAGE()
      ,@ErrorSeverity = ERROR_SEVERITY()
      ,@ErrorState = ERROR_STATE();

    SET NOCOUNT OFF;

    RAISERROR(@ErrorMessage, @ErrorSeverity, @ErrorState);
  END CATCH
END;

La stored procedure sp_alter_column prevede 6 parametri di input:

  • @schemaname rappresenta il nome dello schema in cui risiede la tabella
  • @tablename rappresenta il nome della tabella in cui risiede la colonna che si desidera modificare
  • @columnname rappresenta il nome della colonna che si desidera modificare
  • @columnrename rappresenta l’eventuale nuovo nome che si desidera assegnare alla colonna (by default @columnrename viene assegnato uguale a @columnname)
  • @datatype rappresenta il nuovo tipo di dato da assegnare alla colonna
  • @executionmode rappresenta la modalità di esecuzione (default zero)

Dopo aver controllato i parametri di input, sp_alter_column identifica gli oggetti che che dipendono dalla colonna che si desidera modificare ed in funzione della tipologia genera i comandi di DROP e CREATE per la successiva esecuzione. I comandi T-SQL vengono memorizzati nella tabella temporanea gestita dalla stored procedure. sp_alter_column è in grado di identificare e generare comandi DROP/CREATE per i seguenti oggetti database (che possono avere dipendenze con una colonna):

  • Primary key
  • Foreign key
  • Default constraint
  • Unique constraint
  • Check constraint
  • Indexes
  • Statistics
  • View (Refresh delle viste che espongono la colonna modificata)

Il parametro @executionmode, di tipo bit, regola la modalità di esecuzione della stored procedure. Il valore Zero (default) indica alla sp_alter_column di non applicare le modifiche, ma di visualizzare soltanto i comandi T-SQL necessari per cambiare il tipo di dato oppure il nome della colonna. Questa modalità di esecuzione è particolarmente indicata per familiarizzare con la stored procedure oppure quando si desidera avere maggior controllo sui comandi che verranno eseguiti, lasciando alla sp_alter_column solo il compito di generarli. Assegnando il valore Uno (Modalità dispositiva) al parametro @executionmode si indica alla stored procedure di applicare le modifiche; si ha quindi la modalità di esecuzione dispositiva. Le modifiche saranno comunque eseguite all’interno di una transazione esplicita, il commit verrà applicato al termine di tutte le operazioni solo se l’esito risulterà essere positivo.

Qualora fosse necessario, al fine di identificare comportamenti anomali nel codice della sp_alter_column (e perché no contribuire anche allo sviluppo direttamente sul repository GitHub), il debug della sp_alter_column è possibile attraverso l’ambiente di sviluppo Microsoft Visual Studio! La prima cosa da fare quando si desidera effettuare il debug di una stored procedure è scrivere il comando EXECUTE (EXEC) che ne produce l’esecuzione avendo cura di assegnare ai parametri i valori che possono riprodurre l’anomalia o il caso che si desidera analizzare con il supporto del debugger. Dopo aver preparato il comando di avvio della stored procedure, dovremo eseguirlo attraverso l’IDE di Microsoft Visual Studio come descritto di seguito:

  • Eseguire Microsoft Visual Studio
  • Accedere alla finestra “Esplora oggetti di SQL Server” e collegare l’istanza SQL Server che ospita il database nel quale risiede la sp_alter_column
  • Espandere il ramo relativo al database
  • Espandere i rami “Programmazione” e “Stored Procedure” per individuare la sp_alter_column
  • Premere il tasto destro del mouse in corrispondenza della sp_alter_column, verrà visualizzato un menu pop-up, selezionare quindi la voce “Debug Procedura…”. Una nuova pagina di query pronta per eseguire il debug della stored procedure selezionata verrà aperta automaticamente
  • Il puntatore sarà posizionato sulla prima istruzione dello script T-SQL generato dal debugger. Sostituire il comando EXEC generato dal debugger con quello preparato in precedenza avendo cura di assegnare il valore di ritorno della stored procedure alla variabile @return_value

Utilizzando l’esecuzione “passo-passo” (tasto funzione F11), sarà possibile eseguire tutte le istruzioni dello script fino al comando EXEC che attiverà la stored procedure; successivamente, premendo F11 sul comando EXEC, l’execution pointer verrà trasferito sulla prima istruzione contenuta nella sp_alter_column ed il debug potrà iniziare! Continuando con l’esecuzione “passo-passo” (F11) sarà possibile eseguire tutto il codice T-SQL contenuto nella sp_alter_column.

Conclusioni

Compatibilmente con le regole di conversione tra tipi di dato descritte in questo articolo e schematizzate nella tabella seguente, la stored procedure sp_alter_column permette di modificare agevolmente il tipo di dato ed il nome di una colonna, provatela! Segnalate eventuali miglioramenti (ce ne sono un paio molto evidenti 🙂 che faro’ a breve) e se volete contribuire allo sviluppo su Github, siete i benvenuti!

Buon divertimento!

Chi è Sergio Govoni

Sergio Govoni è laureato in Scienze e Tecnologie Informatiche. Da oltre 16 anni lavora presso una software house che produce un noto sistema ERP, distribuito a livello nazionale ed internazionale, multi azienda client/server su piattaforma Win32. Attualmente si occupa di progettazione e analisi funzionale, coordina un team di sviluppo ed è responsabile tecnico di prodotto. Lavora con SQL Server dalla versione 7.0 e si è occupato d'implementazione e manutenzione di database relazionali in ambito gestionale, ottimizzazione delle prestazioni e problem solving. Nello staff di UGISS si dedica alla formazione e alla divulgazione in ambito SQL Server e tecnologie a esso collegate, scrivendo articoli e partecipando come speaker ai workshop e alle iniziative del primo e più importante User Group Italiano sulla tecnologia SQL Server. Ha conseguito la certificazione MCP, MCTS SQL Server. Per il suo contributo nelle comunità tecniche e per la condivisione della propria esperienza con altri, dal 2010 riceve il riconoscimento SQL Server MVP (Microsoft Most Valuable Professional). Nel corso dell'anno 2011 ha contribuito alla scrittura del libro SQL Server MVP Deep Dives Volume 2 (http://www.manning.com/delaney/).

Leggi Anche

PASS Marathon BI (Dicembre 2019): Sessioni registrate!

Le sessioni presentate durante l’evento PASS Marathon “Edizione BI”, tenuto lo scorso 11 Dicembre 2019, …
